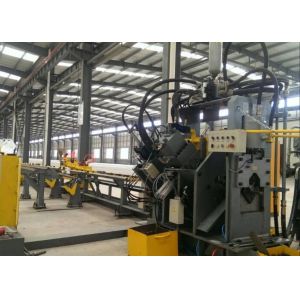

28000×6500×2200mm Angles Shearing Punching Machine Line Input By Keyboard And USB Interface

Applicable Industry:

This machine is a custom-engineered, industry-specific device exclusively developed to perform high-precision angle steel punching, marking, and shearing operations. It is specifically tailored to address the core processing requirements of the angle steel tower sector—an industry where component accuracy directly influences structural stability. By integrating optimized processing logic, the machine ensures precise and efficient handling of angle steel parts critical to tower manufacturing, thereby providing effective support for the consistent production of high-quality tower structures.

Specifications:

Product Composition:

This equipment is primarily composed of core functional modules, including a transverse conveyor, a rotating loading system, a feed-in conveyor, a CNC feed-in carriage, a punching module, a marking module, a cutting module, and an unloading conveyor. It also integrates essential supporting systems—such as hydraulic, electrical, and pneumatic systems—as well as other auxiliary components, forming a complete and coordinated processing assembly to ensure stable operational performance.

Product Features:

1. Control & Drive System
The equipment adopts CNC technology and servo motor-driven feeding, which delivers high operational efficiency and stable workpiece precision. All key hydraulic, pneumatic, and electrical components are procured from imported suppliers, ensuring the reliable performance of the entire system.

2. Punch & Die Configuration
Each side is fitted with three sets of punches and dies, which can accommodate three types of punches with different diameters. Under PLC control, the three sets of molds are capable of synchronous movement to adjust the punching reference mark, thereby meeting flexible processing requirements.

3. Automated Processes & Unloading
The marking, punching, and shearing processes of the equipment are fully automated, which minimizes manual intervention. All finished angle steel components can be unloaded via a pneumatic flipping device—this effectively reduces operators’ labor intensity and enhances overall production efficiency.

4. Control System Configuration & Functions
The control system consists of a host computer, CNC system, servo motor, PLC, external detection sensors, and other supporting components. Processing operations can be initiated simply by inputting workpiece dimensions, which streamlines operational procedures. Additionally, programs can be stored, selected, displayed, and transmitted according to workpiece numbers, providing convenience for flexible production management.

These specimens, which cover common specifications and processing scenarios in the angle steel tower industry, allow users to directly inspect the equipment’s processing quality, precision, and craftsmanship. They serve as a tangible reference for evaluating the equipment’s performance and its compatibility with specific production requirements, thereby facilitating data-driven decision-making for potential application scenarios.

In the construction of ultra-high voltage (UHV) transmission lines—where towers are required to withstand extreme meteorological conditions and heavy loads—this equipment plays a critical role in processing the angle steel components that form the towers’ main framework. It reliably performs drilling and stamping operations on the angle steel used for tower bodies, cross-arms, and other key structural parts. This ensures precise dimensional accuracy and robust connections, thereby safeguarding the overall stability of the towers.
